How The Process Works

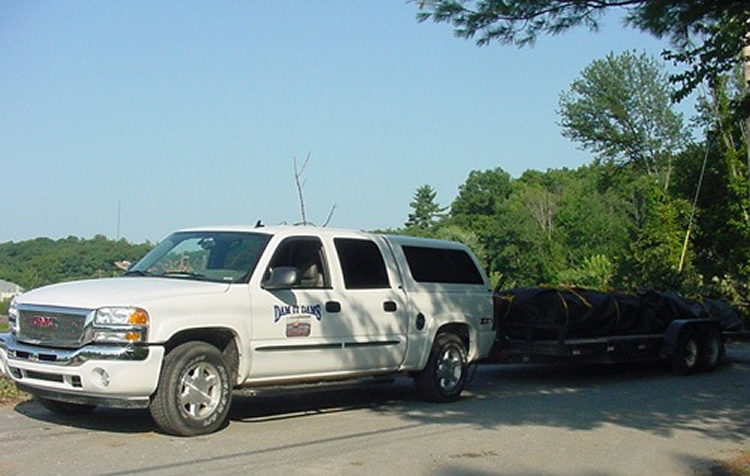

Step 1: The rolled-up Dam is delivered to the job site on a truck or trailer

Click image to enlarge

portable cofferdam delivered

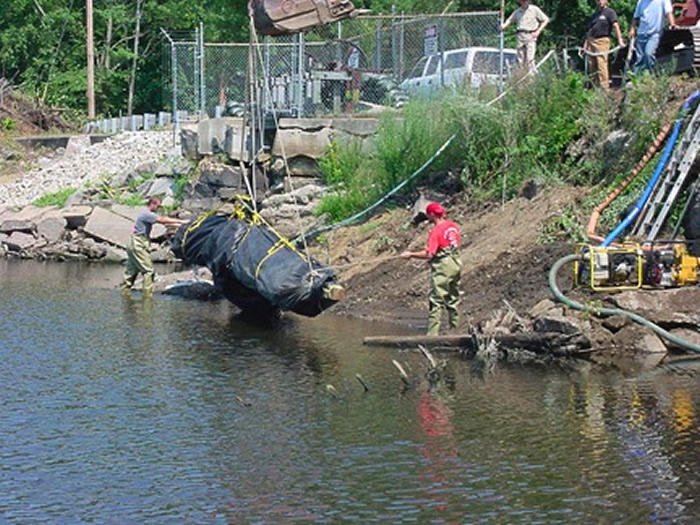

Step 2: The Dam is lifted from the trailer and placed at the shoreline

Click image to enlarge

dropping off cofferdam

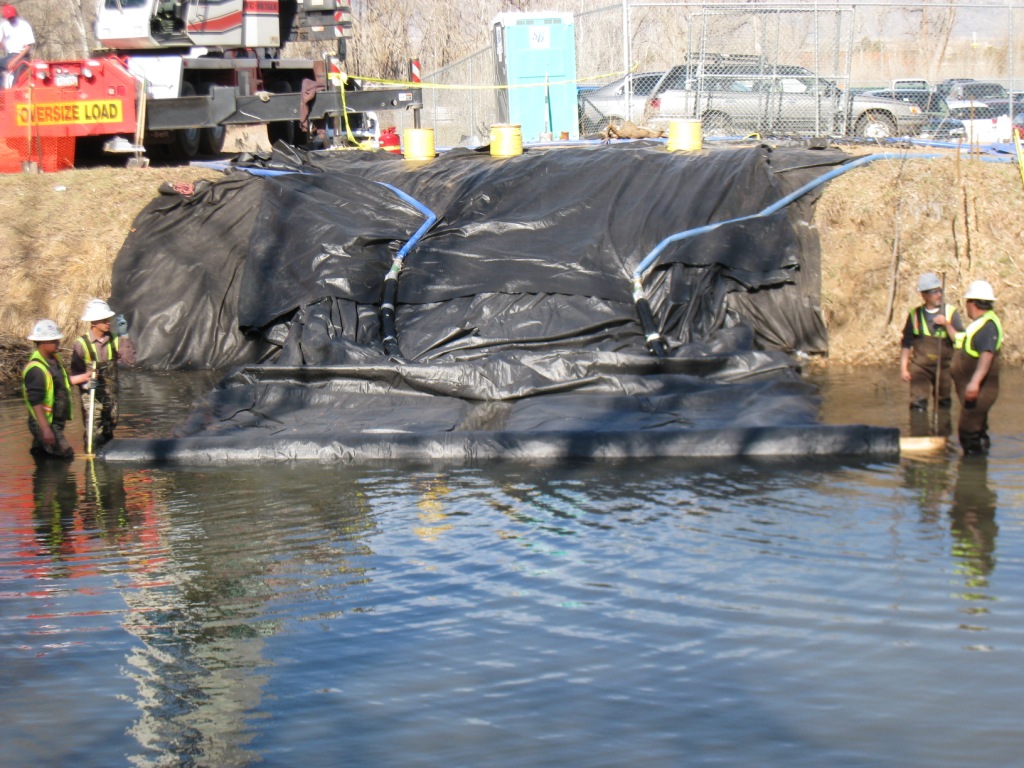

Step 3: Two identical pumps are hooked up to fill the internal tubes with onsite water
Click image to enlarge

Hooking up water pumps to portale cofferdam

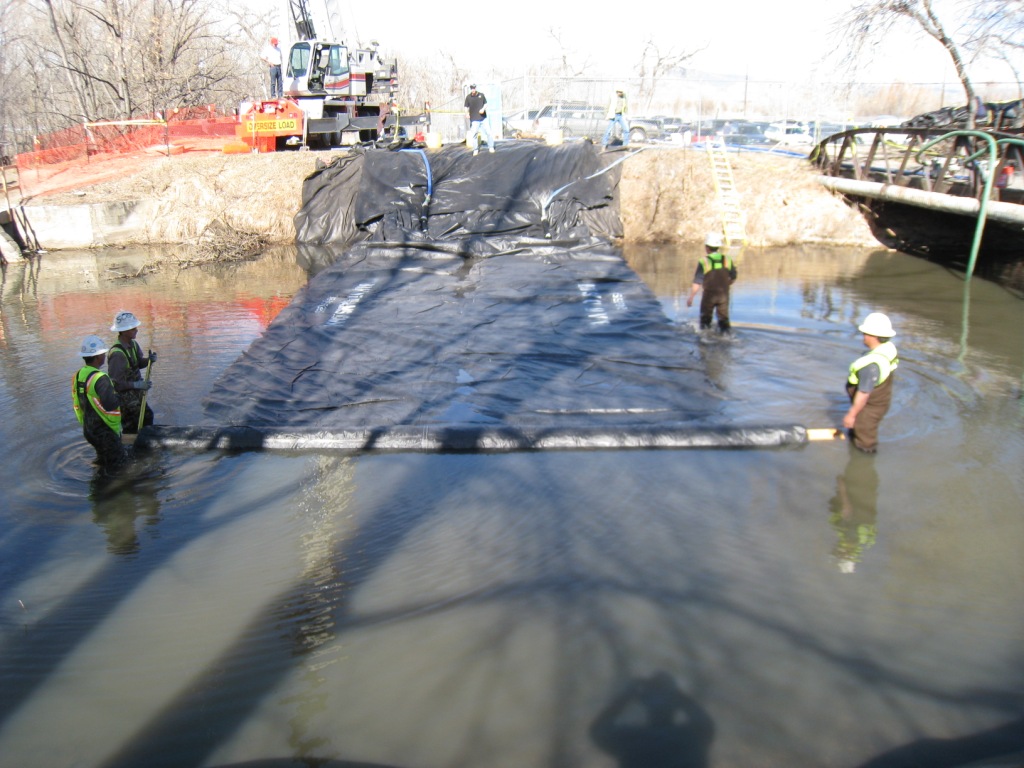

Step 4: As the pumps fill the Dam, the Dam unrolls and is guided into place
Click image to enlarge

water fiils cofferdam

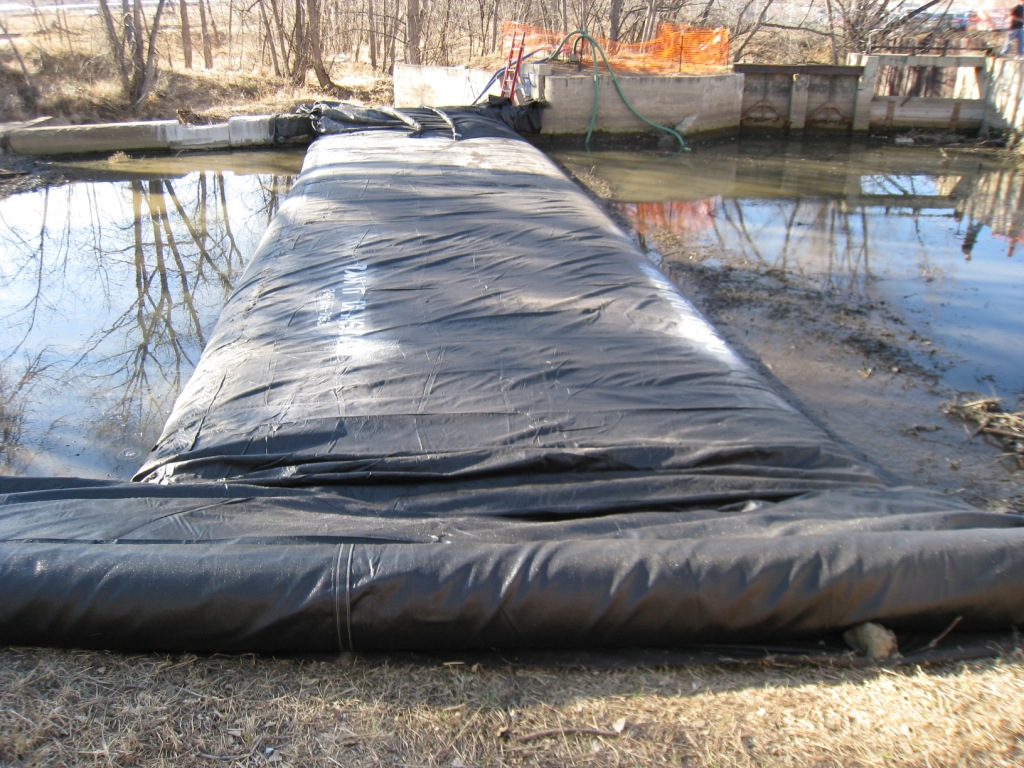

Step 5: The Dam is nearly fully inlated as it reaches the opposite shore
Click image to enlarge

temporary cofferdam is nearly fully inflated

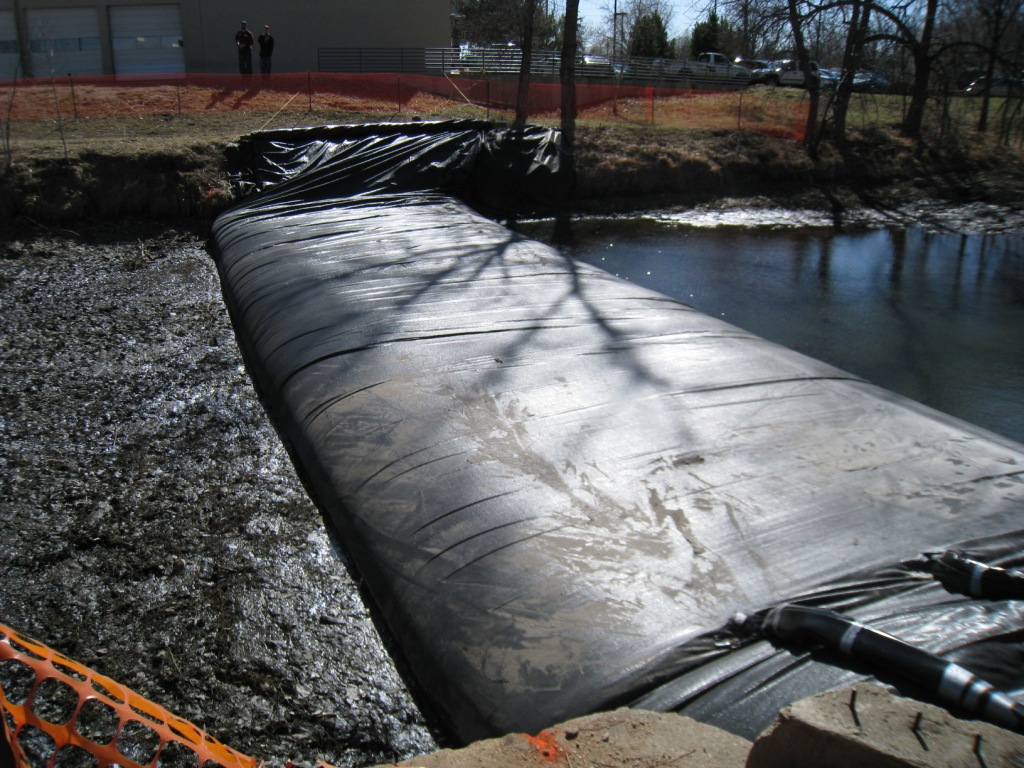

Step 6: The water is pumped from the dry side to the wet side of the Dam
Click image to enlarge

water is pumped from one side of the cofferdam to the other

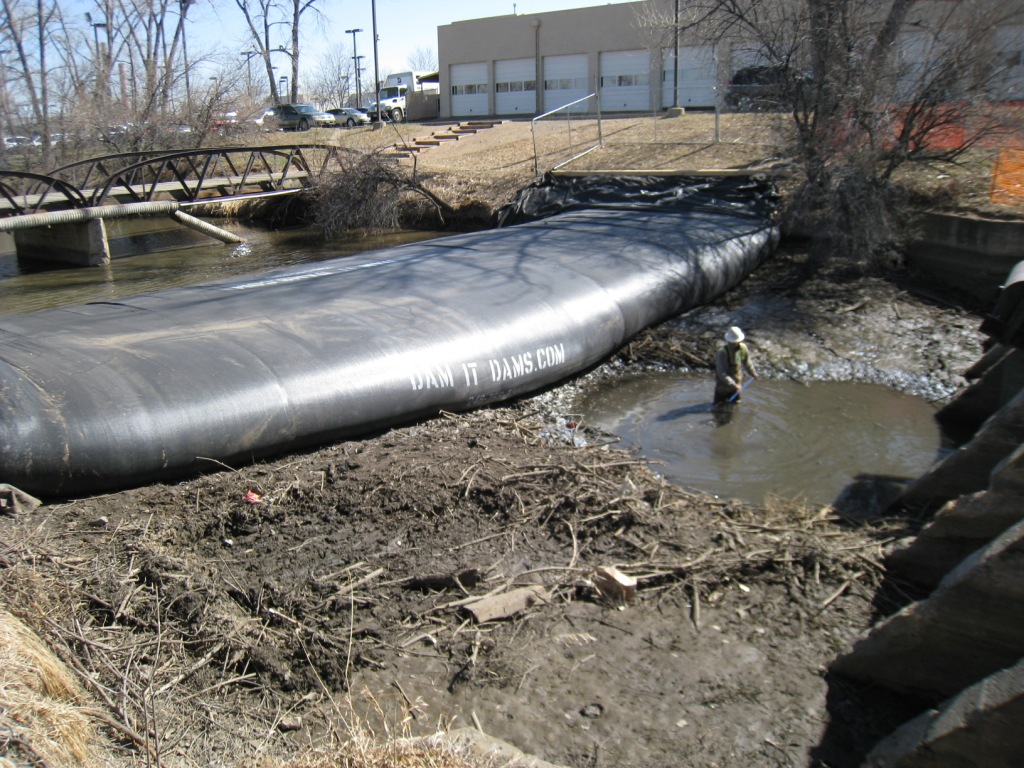

Step 7: The work for the project at hand can now get done on the dry side
Click image to enlarge

portable cofferdam

Step 8: Empty the dam, roll it up, put it on the trailer and move it to the next job



      portable cofferdam
upleft   upright
Step 5: The Dam is nearly fully inlated as it reaches the opposite shore
Click image to enlarge and again to reduce
lowleft   lowright
      portable cofferdam
upleft   upright
Step 6: The water is pumped from the dry side to the wet side of the Dam
Click image to enlarge and again to reduce
lowleft   lowright
      temporary cofferdam
upleft   upright
Step 7: The work for the project at hand can now get done on the dry side
Click image to enlarge and again to reduce
lowleft   lowright
      temporary cofferdam
upleft   upright
Step 8: Empty the dam, roll it up, put it on the trailer and move it to the next job
